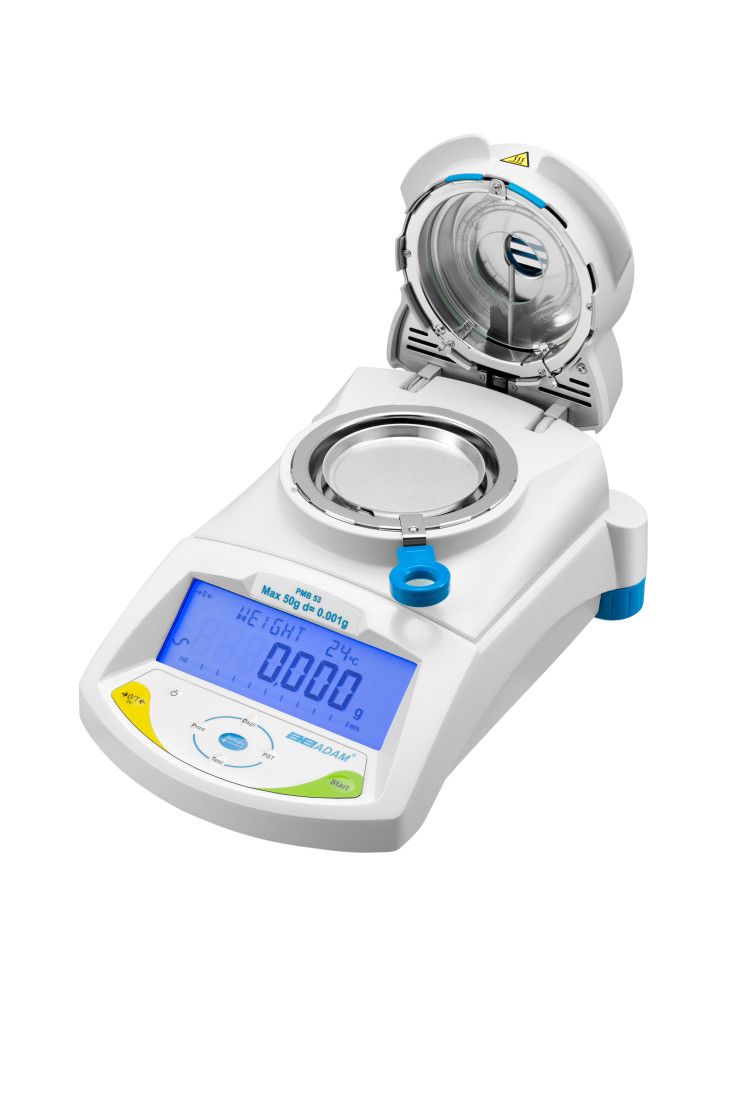

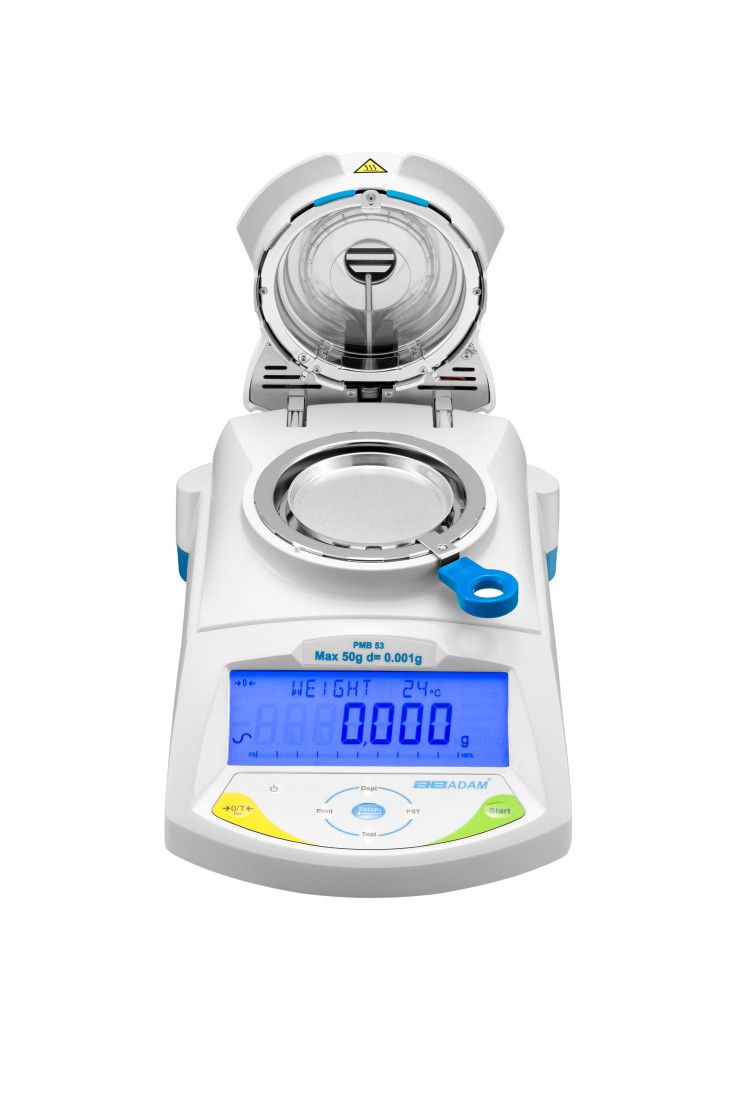

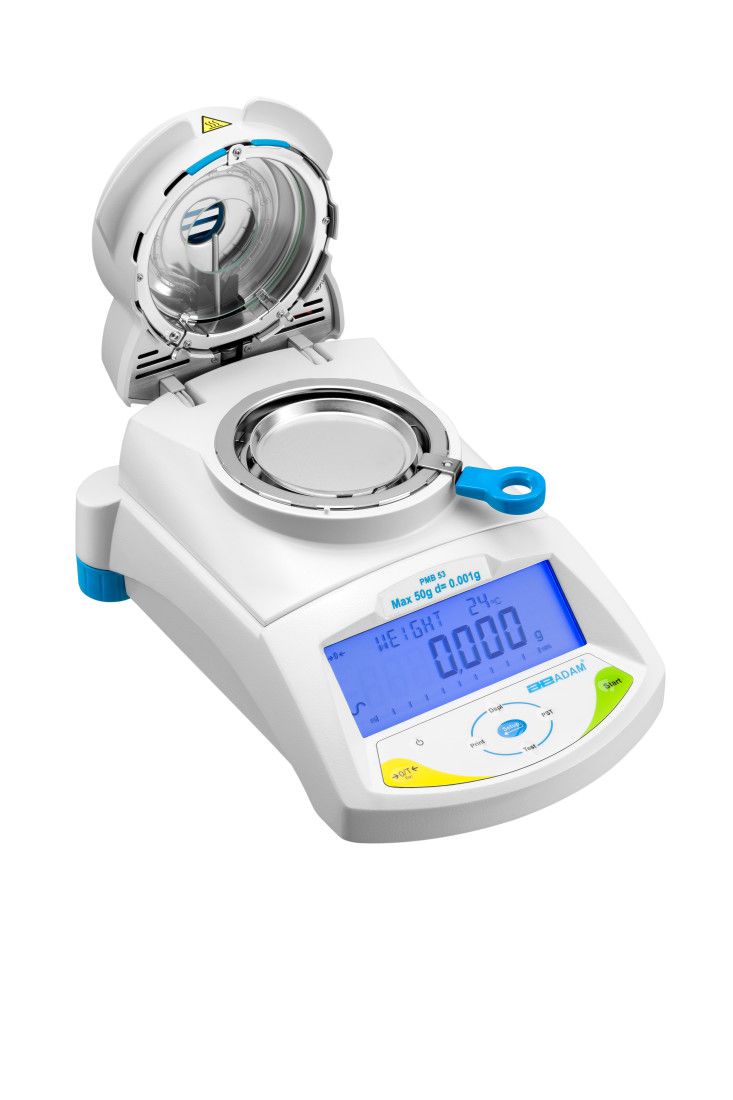

PMB Moisture Analyser-PMB 53
With simple operation and rapid response time, PMB offers top value in moisture analysis. USB and RS-232 interfaces facilitate connectivity, while another USB port allows storage of test programs and data on flash drives.
Applications
-
-
Features
-
-
-
-
-
-
-
-
-
-
With simple operation and rapid response time, PMB moisture analysers offer the top value in their class. The automatic test-setting function enables easy recall for frequent testing of the same items without additional user programming. USB and RS-232 interfaces provide computer and printer connections to store test programs and results. No additional software is needed to take readings, giving users total freedom to collect data on a production floor or in the field. A single 400-watt halogen bulb heats samples in 1 °C selectable increments. Three heating options give users the flexibility to customise test methods and temperatures for different materials.
Features and Benefits
- Vivid, backlit LCD easily visible in any lighting conditions
- Programmable backlight can be set to "always on," "always off" or "light only when weighing"
- Capacity tracker built into display for easily monitoring possible overloads
- Scratch-resistant aluminum housing protects internal components
- Colour-coded keys facilitate quick recognition of the most frequently used buttons
- Pan lifter allows easy placement and removal of samples
- RS-232 interface provides speedy connection to computers and printers
- USB host for memory card and USB I/O interface
- USB interface included for data communication
- Temperature range 50°C to 160°C in one-degree increments
- Mains power cord
- Three settings for heating sample include ramp-up, stepped temperatures and single temperature
- Four preset drying modes allow test routines for several products
- Audible overload alarm warns when capacity is exceeded
- Testing can be set to start automatically when lid closes
- Calibration for temperature and weight
- Multilingual display allows use in many different countries
- Quick and easy configuration using the keypad
- Zero-tracking feature ensures display returns to zero reading
- Internal memory stores 49 different recipes and up to 99 test results, while additional test results and settings can be stored on a flash drive
- Security slot for optional lock and cable to help prevent theft
- Adam Connect compatible for wireless data transfer to printers and PCs
- A 5-year warranty means quality assured for years of use.
Technical specification
Model
PMB 53
UPC: 819309014737
Metrology
Capacity
- 50g
- 50g
Readability
- 0.001g / 0.01%
- 0.001g / 0.01%
Repeatability
- 0.001g
- 0.001g
Linearity
- 0.002g
- 0.002g
General Specifications
Pan size
- 100mm ø
- 100mm ø
Weighing Units
- %M, %S, ATRO %M, ATRO %S, g
- %M, %S, ATRO %M, ATRO %S, g
Stabilisation Time
- 3
- 3
Interface
- RS-232/USB
- RS-232/USB
Calibration
- External calibration
- External calibration
Display
- Backlit LCD with 24mm high digits
- Backlit LCD with 24mm high digits
Power
Power Supply
- Power cord
- Power cord
MSDS Sheet
Operating Conditions
Operating Temperature
- 0° to 40°C / 32° to 104°F
- 0° to 40°C / 32° to 104°F
Product Information
Construction
- Die-cast aluminum
- Die-cast aluminum
Net Weight
- 6.1kg
- 6.1kg
Dimensions
Overall dims
- 250x360x185mm
- 250x360x185mm
