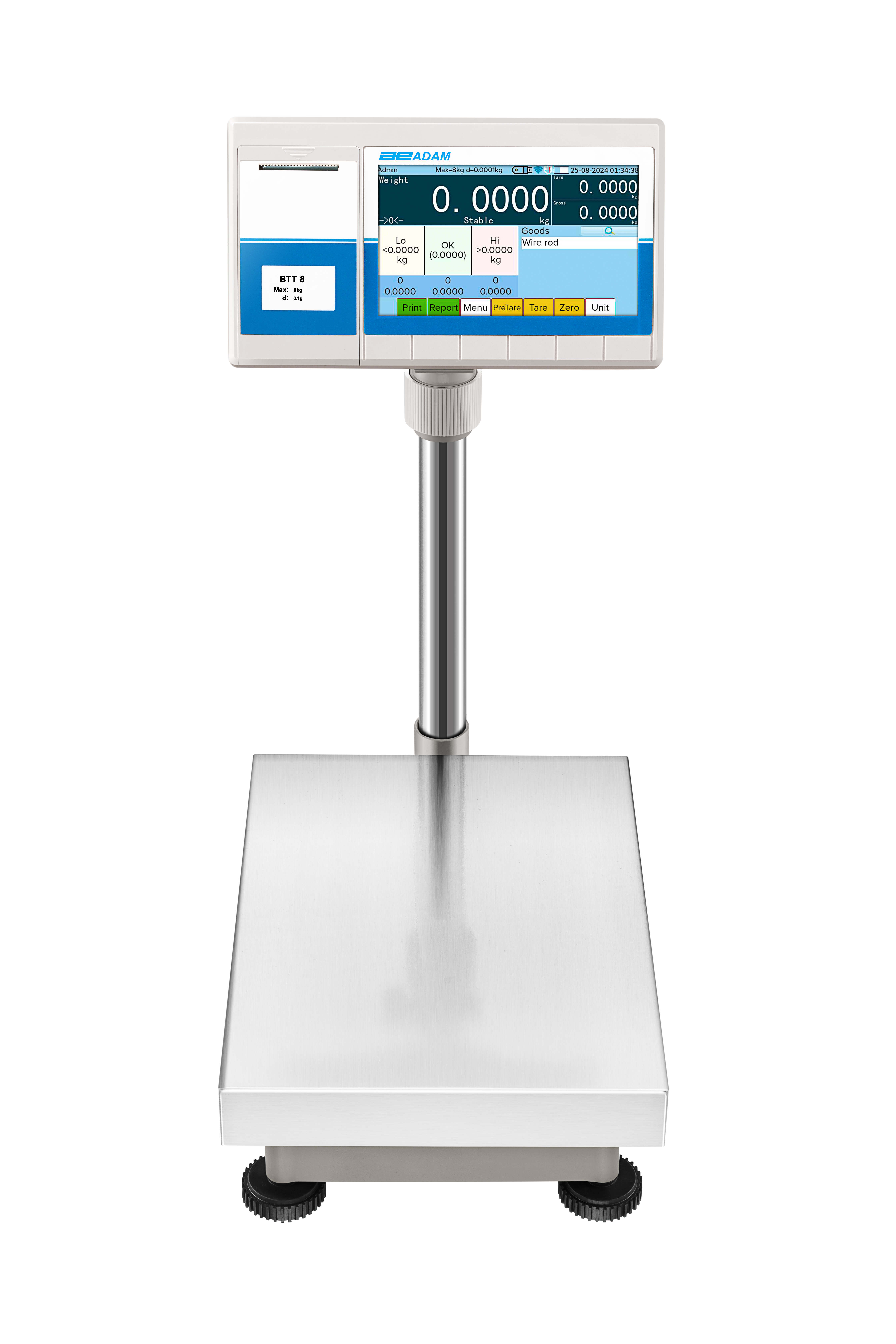

BTT Touch-Screen Label Printing Scales
With an 8" touchscreen display, BTT offers an intuitive, user-friendly interface, the convenience of a built-in printer and easy connectivity via RS-232, USB and optional ethernet, Wi-FI and wireless. Labels can be fully customised (including weight data, QR codes, bar codes and logos) in varying lengths. BTT can store up to 10 label designs for fast recall. Includes a port to connect an optional bar code scanner.
Applications
Features
BTT Touch-Screen Label Printing Bench and Floor Scales
Ideal for complex logistics tasks
Offering innovative stock and inventory control features, the BTT bench and floor scales combine user-friendly touch-screen controls with advanced weighing technology, offering users enhanced accuracy, built-in connectivity and all-in-one label printing convenience.
Well-suited to manufacturing facilities, shipping and receiving areas, packing locations, and distribution warehouses, AE 505 and BTT easily perform applications such as: Percentage weighing, Checkweighing, Accumulation, Parts counting, Averaging and Net total weighing.
Weighing Units:
Easily switch between a variety of weighing units, including g, kg, lb, lb:oz, oz, ct, dr, mm, tl.T and T.
Connectivity:
USB and RS-232 interfaces are available for speedy connection to computers and printers. Choose to add wireless, Wi-Fi or RJ45 Ethernet modules for extra versatility.

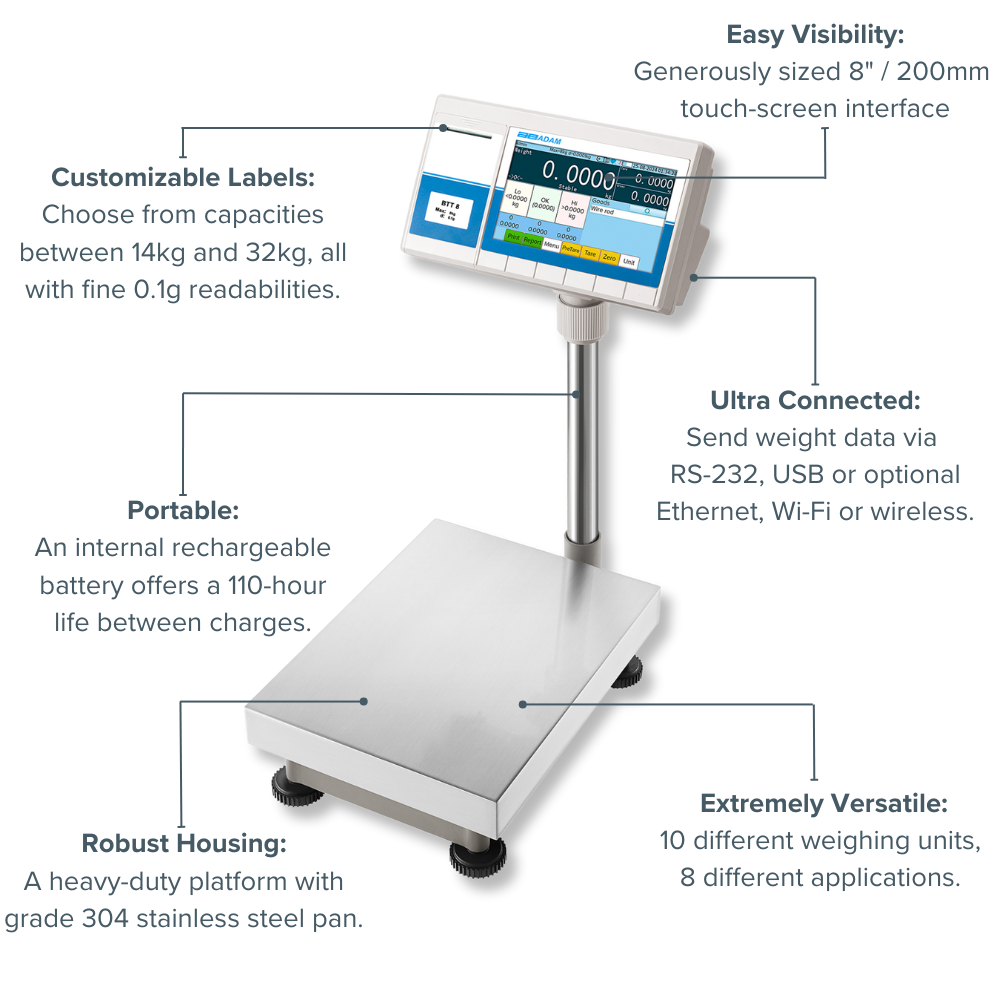

Large Touchscreen Display
BTT features a generously sized 8-inch / 200mm touch-screen interface for excellent visibility and simplified operations.

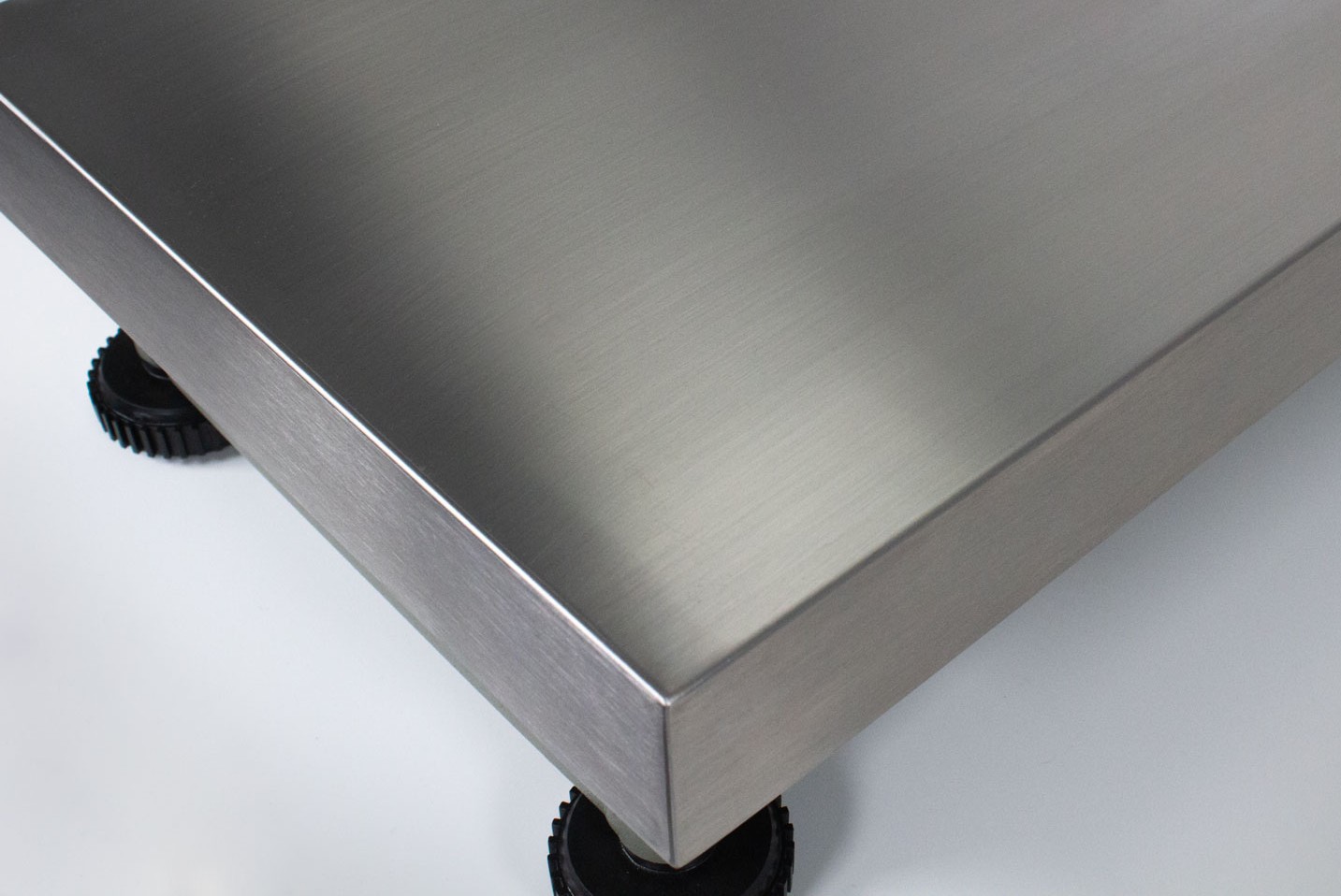

Stainless Steel Pan
Large, grade 304 stainless steel pan allows swift cleaning. Available in bench and floor platform sizes.
Customisable Labels
Built-in printer to output bespoke labels (created with Adam’s easy-to-use label design software) and internal memory for fast recall of up to 10 label designs.
1000+ Product Look-Ups
BTT bench and floor scales offer a pop-up QWERTY keyboard to enter more than 1,000 PLU numbers and descriptions.
Data Tracking
Printouts include date and time for data tracking within Good Manufacturing Practice (GMP) guidelines.
Advanced Connectivity
Easy connectivity to PCs, printers and the optional barcode scanner via integrated RS-232 and USB ports, as well as optional wireless, Wi-Fi or RJ45 Ethernet modules.
BTT Bench Scales
Capacity: 8kg to 60kg
Readability: 0.1g to 2g
Pan Size: 400 x 300mm
BTT Floor Scales
Capacity: 75kg to 300kg
Readability: 5g to 20g
Pan Size: 500 x 400mm
Sturdy and durable, BTT touch-screen label printing scales are ideal for manufacturing, shipping and receiving, packing and distribution warehouses. The BTT has a built-in printer that can print weight, QR codes, bar codes and labels in numerous languages. Software is included for personalised label design and formatting on computers. BTT scales consist of a sturdy ABS plastic indicator, mild steel base, and easy-to-clean stainless steel platform. The indicator can be placed on a bench or attached to the included pillar. The BTT offer two platform sizes to accommodate large or small objects. RS-232, USB and optional Wi-Fi, RJ45 and wireless interfaces provide speedy connection to computers and printers.
Features and Benefits
- Checkweighing with audible alarm
- Colour-coded keys facilitate quick recognition of the most frequently used buttons
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- Large, grade 304 stainless steel pan allows easy cleaning
- Rugged construction stands up to industrial use
- Sealed keypad protects against dirt and spills
- Overload protection helps prevent damage to internal components
- Built-in printer can print weight, QR codes, bar codes and customized labels in numerous languages
- Rechargeable battery included for operation almost anywhere
- Programmable auto power-off to save energy
- Memory accumulation totals results
- Parts counting optimisation automatically refines piece weight as parts are added
- Selectable digital filtering helps minimise effects of vibration and disturbances
- Zero-tracking feature ensures display returns to zero reading
- 1:600,000 internal counting resolution
- USB and RS-232 interfaces provide speedy communication with computers and printers
- Product look up (PLU) memory locations store a range of items for recall
- Selectable language for printing
- Parts counting with freely selectable sample sizes
- Wall-mount bracket for placing indicator on vertical surface
- Adam Connect compatible for wireless data transfer to printers and PCs
- A 3-year warranty means quality assured for years of use.
