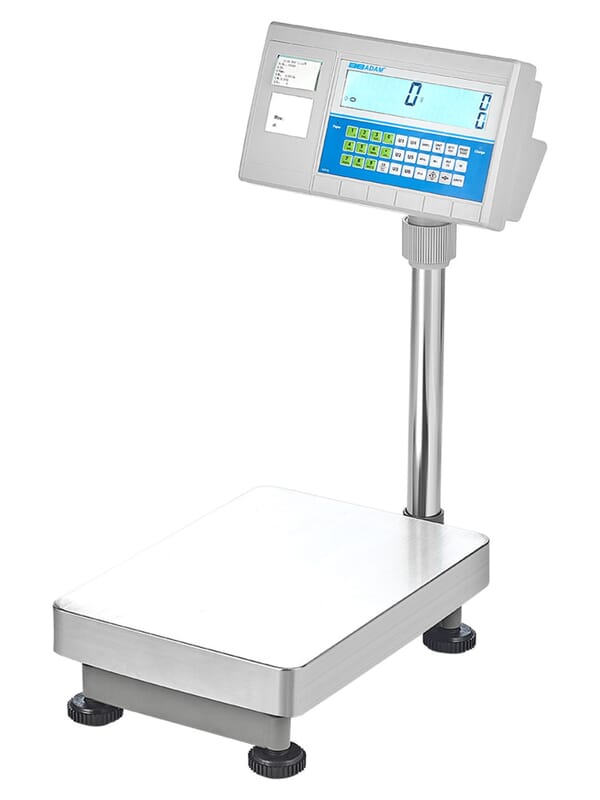

BCT Advanced Label Printing Scales-BCT 60
With an easy-to-clean stainless steel platform, BCT scales offer excellent value for industrial counting tasks. BCT contains a printer that prints QR codes, bar codes and labels. Store up to 1006 PLUs or piece weights to expedite inventory and batching jobs.
Applications
-
-
-
-
Features
-
-
-
-
-
-
-
-
-
Featuring a removable, easy-to-clean stainless steel platform, BCT advanced label printing scales provide excellent value for industrial counting and weighing tasks. The BCT features a printer that can print weight, QR codes, bar codes and labels, which can be customized using the included software. Store and recall up to 1006 PLUs or piece weights to improve efficiency in production or warehouse applications. RS-232 interface provide speedy connection to computers and printers. BCT offers a choice of two platform sizes, making it ideal for counting inventory, shipping and receiving, and batching items for processing.
Features and Benefits
- Vivid, backlit LCD easily visible in any lighting conditions
- Programmable backlight can be set to "always on," "always off" or "light only when weighing"
- Adjustable levelling feet help optimise setup
- Colour-coded keys facilitate quick recognition of the most frequently used buttons
- Large, grade 304 stainless steel pan allows easy cleaning
- RS-232 interface provides speedy connection to computers and printers
- Rugged construction stands up to industrial use
- Sealed keypad protects against dirt and spills
- Built-in printer can print weight, QR codes, bar codes and customized labels in numerous languages
- Rechargeable battery included for operation almost anywhere
- Programmable auto power-off to save energy
- Parts counting with freely selectable sample sizes
- Parts counting optimisation automatically refines piece weight as parts are added
- Zero-tracking feature ensures display returns to zero reading
- Selectable digital filtering helps minimise effects of vibration and disturbances
- 1:600,000 internal counting resolution
- A 3-year warranty means quality assured for years of use.
Technical specification
Model
BCT 60
UPC: 840886106140
Metrology
Capacity
- 60kg
- 60kg
Readability
- 2g
- 2g
Repeatability
- 2g
- 2g
Linearity
- 4g
- 4g
Internal Counting Resolution
- 1:600,000
- 1:600,000
General Specifications
Pan size
- 400x300mm
- 400x300mm
Weighing Units
- g, kg, lb, oz
- g, kg, lb, oz
Stabilisation Time
- 2
- 2
Interface
- RS-232
- RS-232
Calibration
- External calibration
- External calibration
Display
- Backlit LCD with 22mm high digits
- Backlit LCD with 22mm high digits
PLU memories
- 1006
- 1006
Power
Power Supply
- 12VDC 3A adapter / Internal rechargeable battery
- 12VDC 3A adapter / Internal rechargeable battery
Battery type
- Lead Acid
- Lead Acid
Number of batteries
- 1
- 1
Maximum Battery Life (in hours)
- 200
- 200
Operating Conditions
Operating Temperature
- 0° to 40°C / 32° to 104°F
- 0° to 40°C / 32° to 104°F
Product Information
Construction
- ABS plastic indicator with die-cast aluminum base
- ABS plastic indicator with die-cast aluminum base
Net Weight
- 11kg
- 11kg
Dimensions
Overall dims
- 300x520x680mm
- 300x520x680mm
