AE 504 Label-Printing Indicator-AE 504
- Capacity
- Selectable
The AE 504 advanced label printing indicator pairs a full range of counting applications with the ability to print fully customisable labels and barcodes into a single compact solution.
Applications
Features

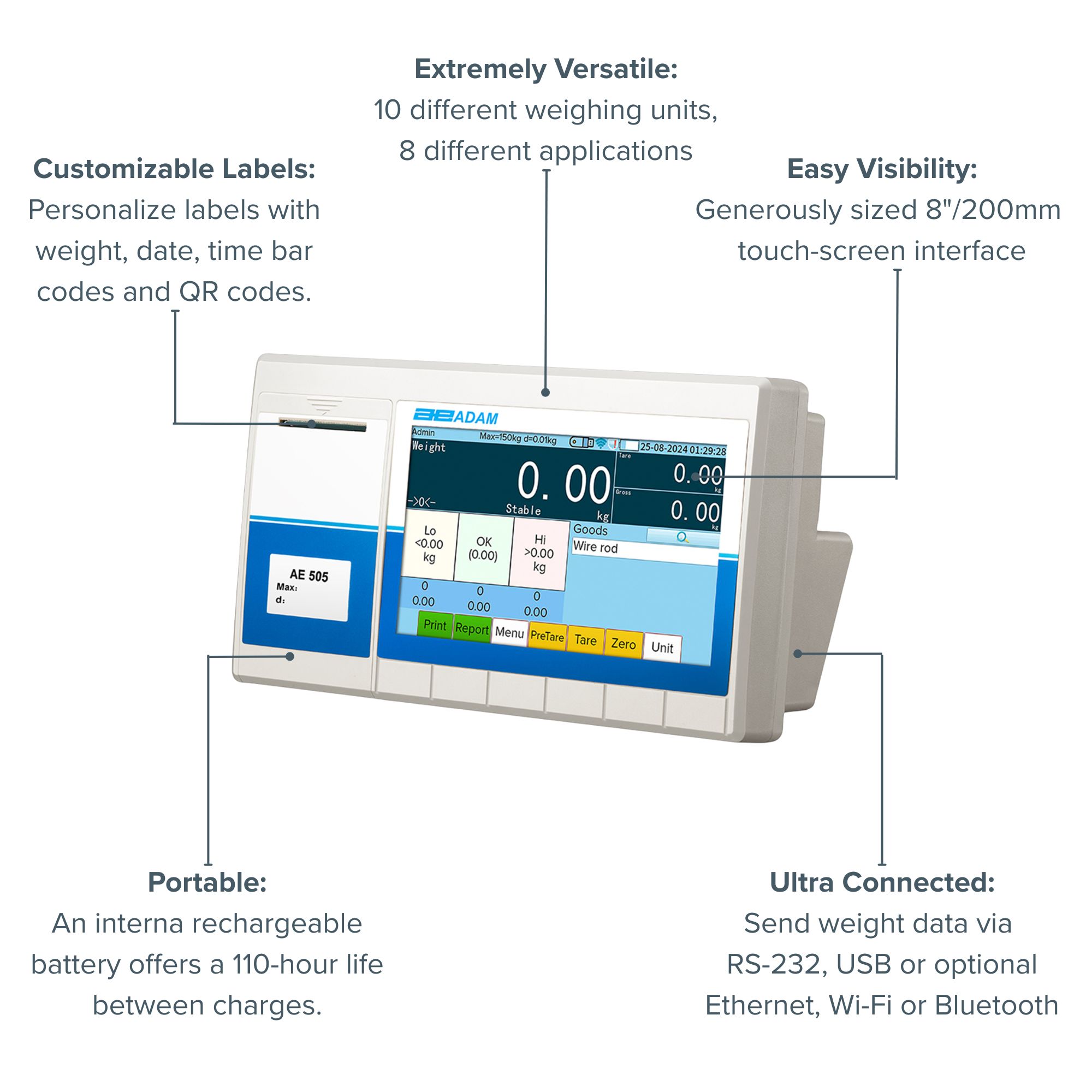

AE 505 Touch-Screen Label Printing Indicators
Ideal for complex logistics tasks
Offering innovative stock and inventory control features, the AE 505 indicators combine user-friendly touch-screen controls with advanced weighing technology, offering users enhanced accuracy, built-in connectivity and all-in-one label printing convenience.
Well-suited to manufacturing facilities, shipping and receiving areas, packing locations, and distribution warehouses, AE 505 and BTT easily perform applications such as: Percentage weighing, Checkweighing, Accumulation, Parts counting, Averaging and Net total weighing.
Weighing Units:
Easily switch between a variety of weighing units, including g, kg, lb, lb:oz, oz, ct, dr, mm, tl.T and T.
Connectivity:
USB and RS-232 interfaces are available for speedy connection to computers and printers. Choose to add Bluetooth, Wi-Fi or RJ45 Ethernet modules for extra versatility.

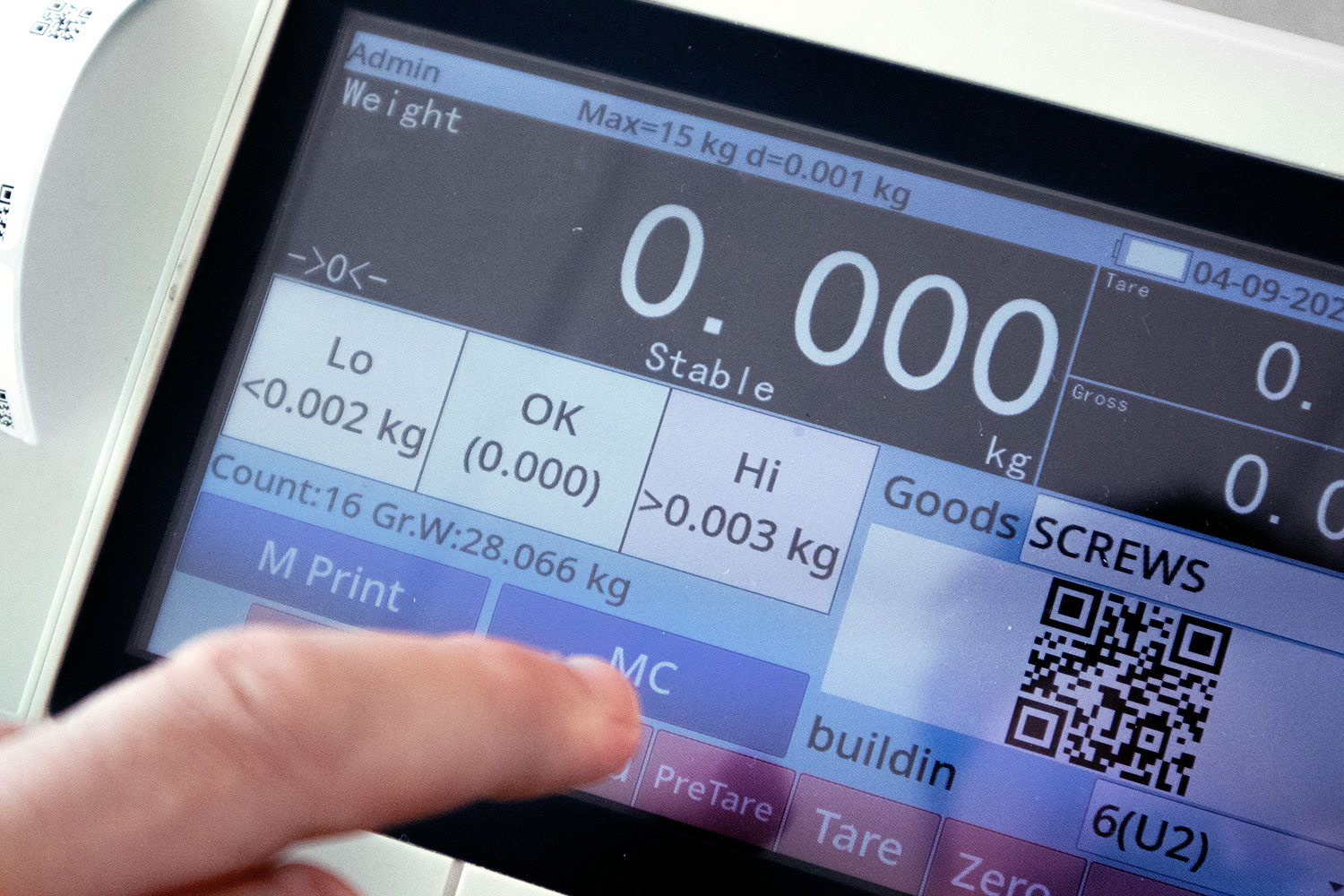

Large Touchscreen Display
AE 505 features a generously sized 8-inch / 200mm touch-screen interface for excellent visibility and simplified operations.

Bench & Floor Scale Compatible
Our BTT Touch-Screen Label Printing Bench and Floor Scales offer capacities from 8kg to 300kg with readabilities from 0.1g to 20g.

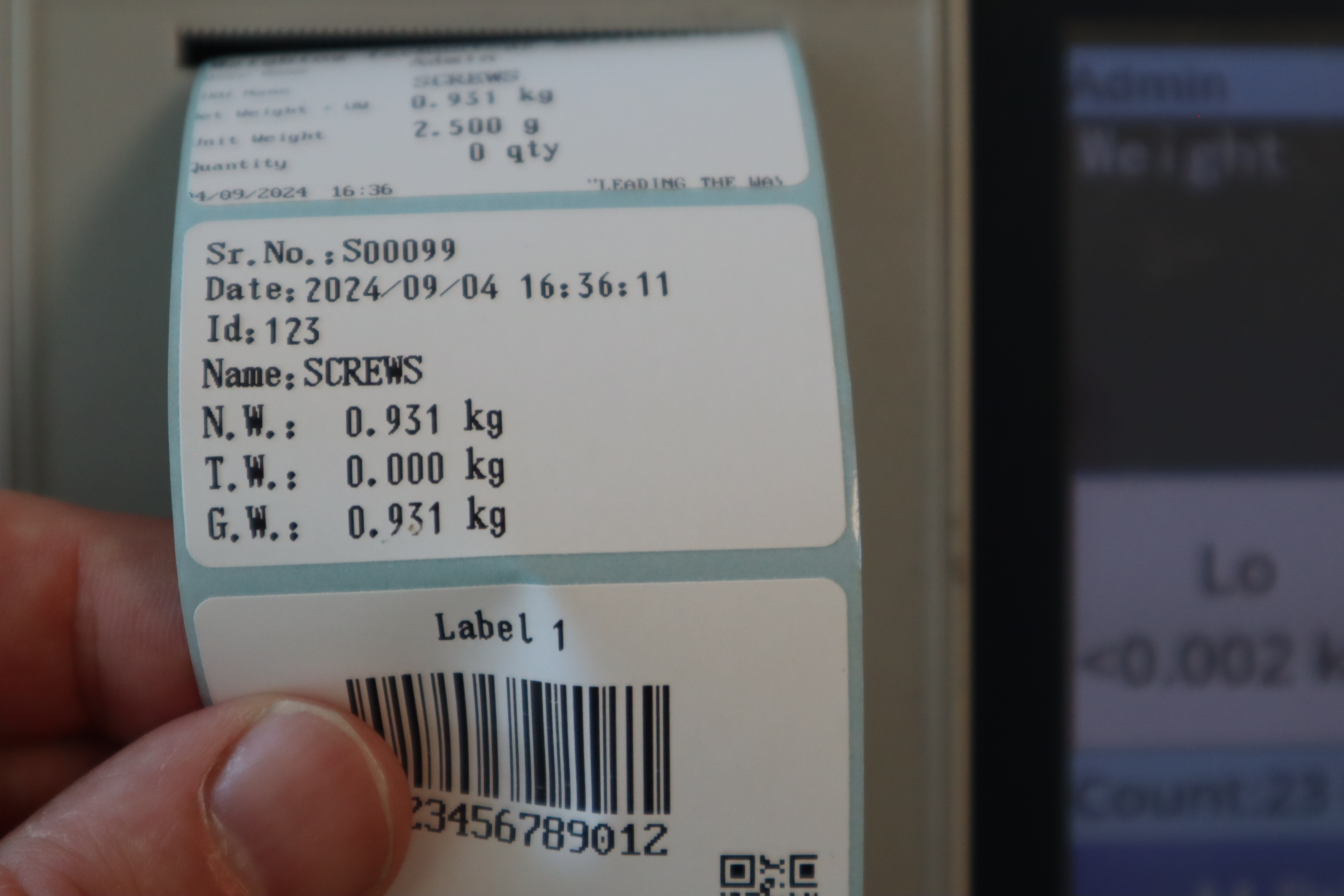

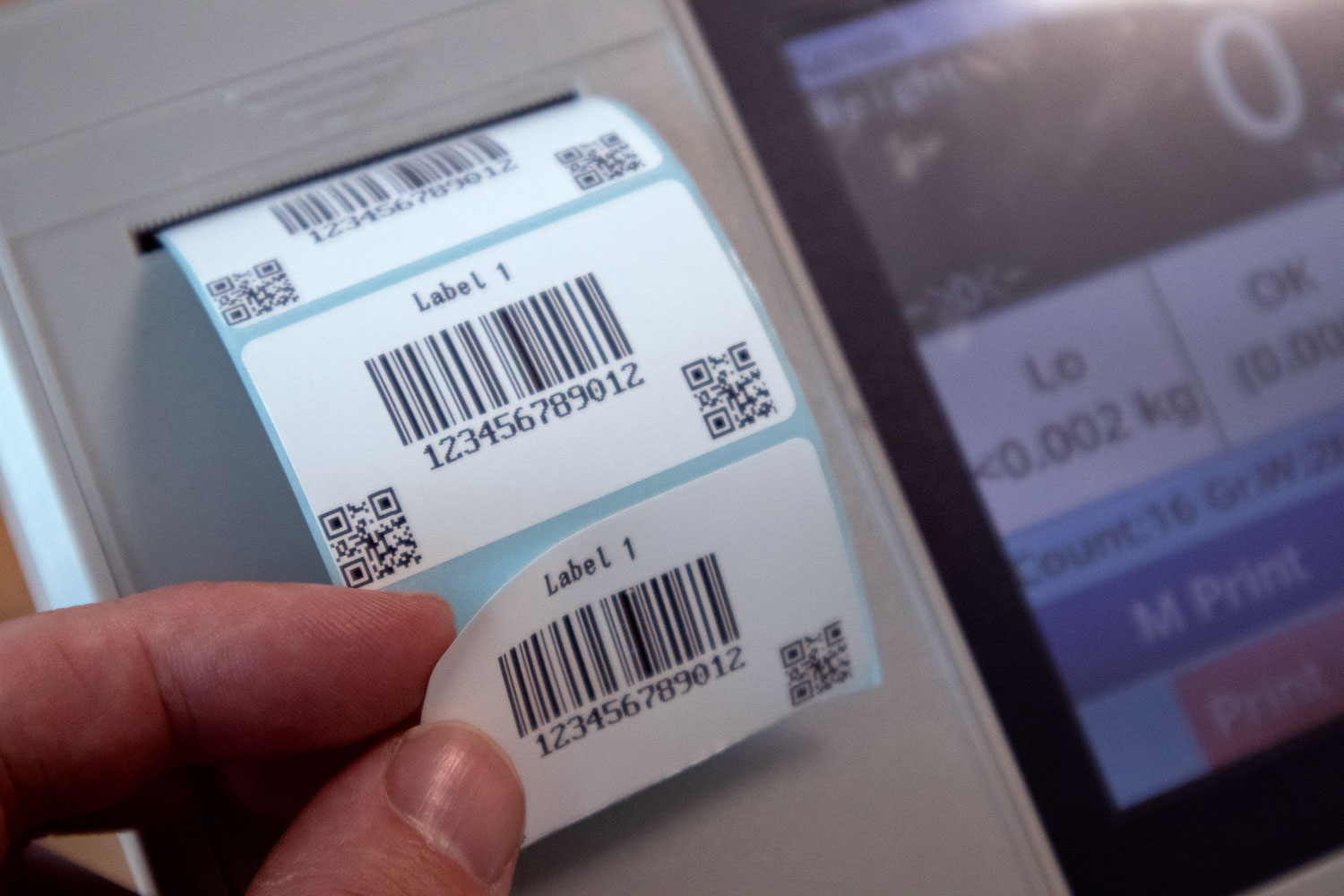

Customisable Labels
Built-in printer to output bespoke labels (created with Adam’s easy-to-use label design software) and internal memory for fast recall of up to 10 label designs.
1000+ Product Look-Ups
BTT bench and floor scales offer a pop-up QWERTY keyboard to enter more than 1,000 PLU numbers and descriptions.

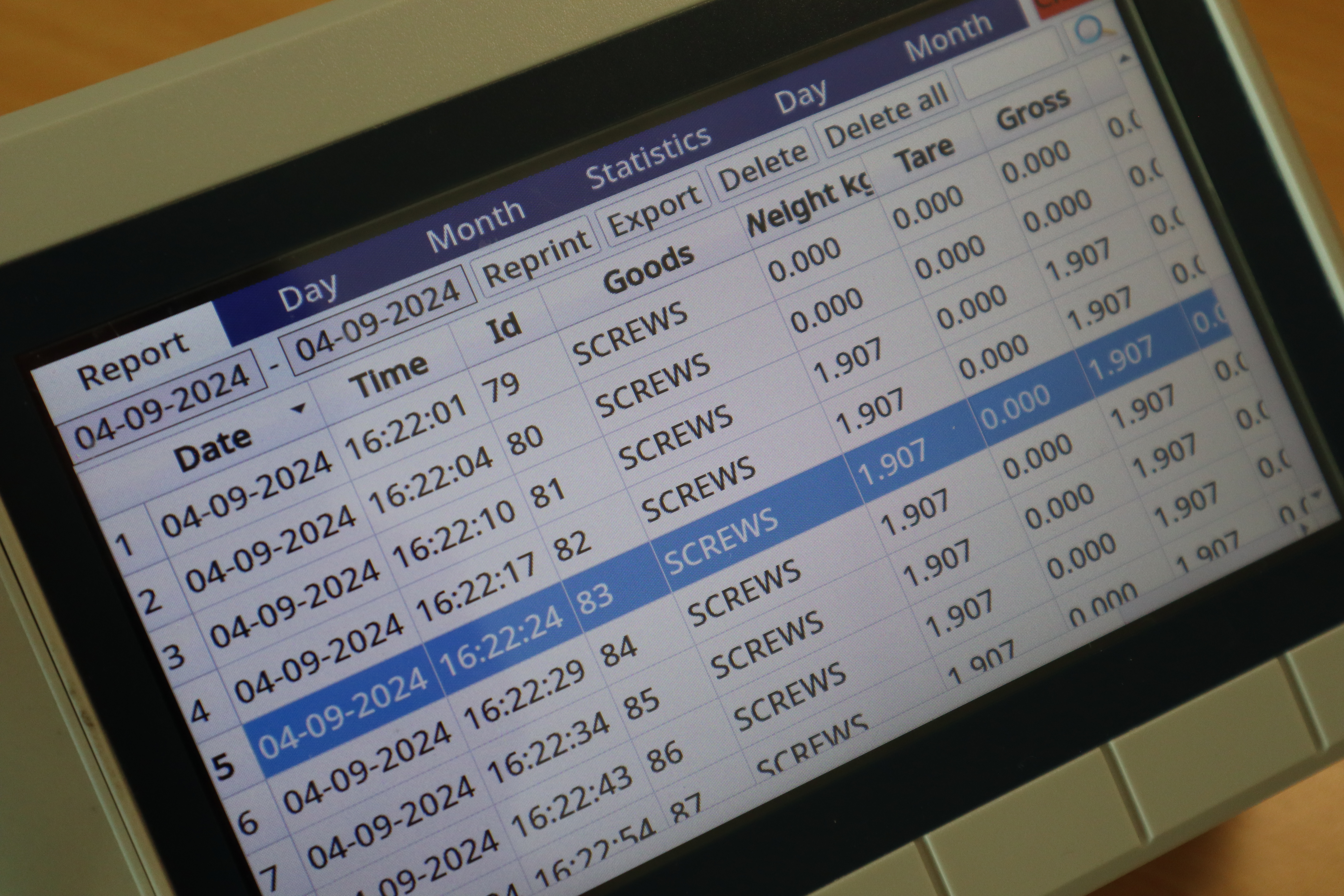

Data Tracking
Printouts include date and time for data tracking within Good Manufacturing Practice (GMP) guidelines.

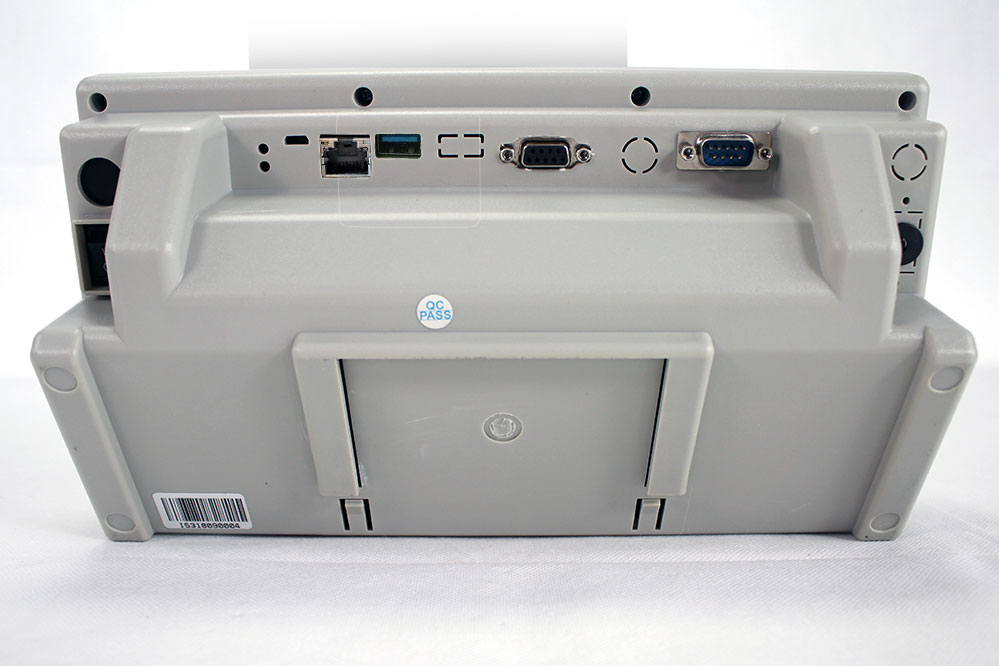

Advanced Connectivity
Easy connectivity to PCs, printers and the optional barcode scanner via integrated RS-232 and USB ports, as well as optional Bluetooth, Wi-Fi or RJ45 Ethernet modules.

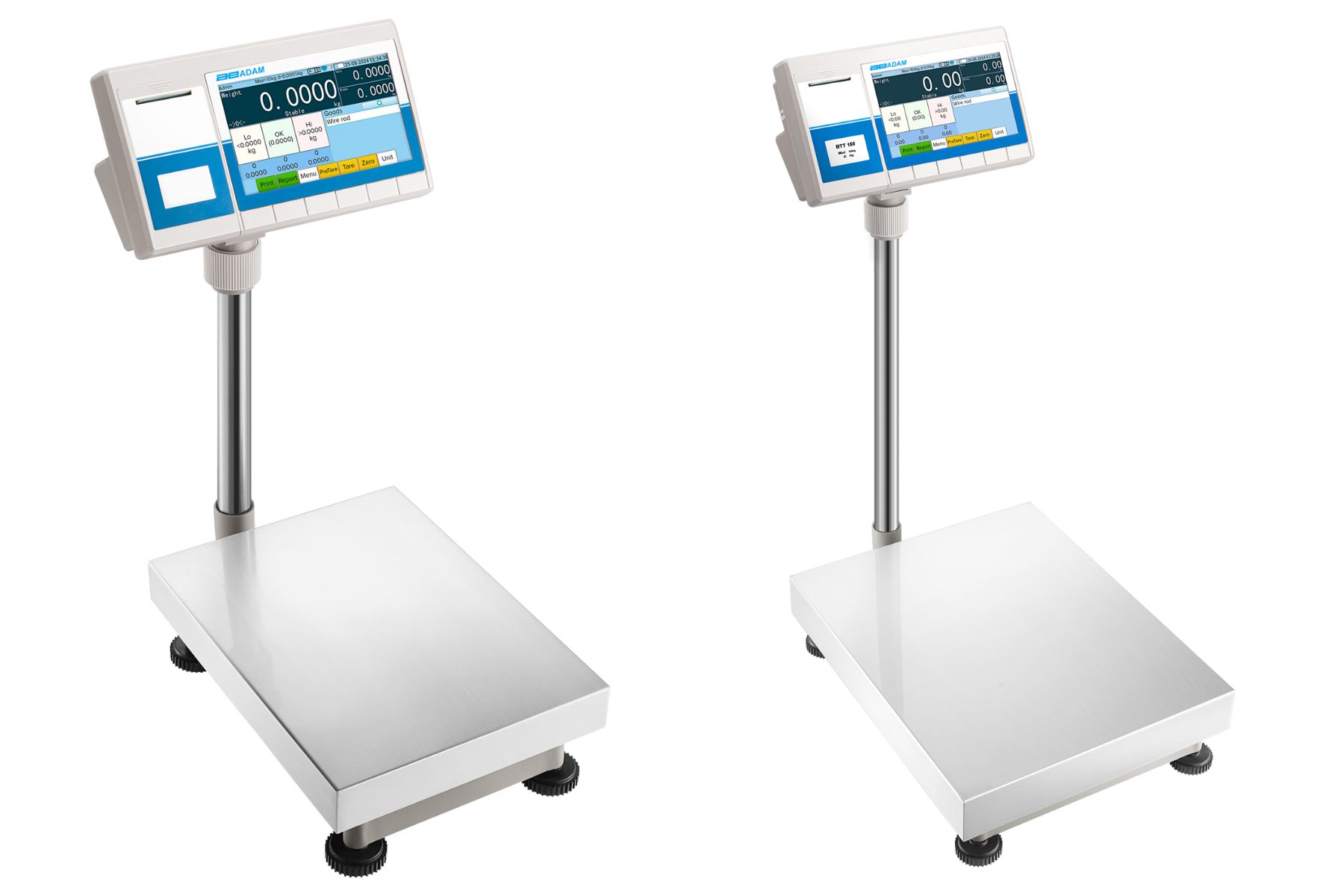

BTT Bench Scales
Capacity: 8kg to 60kg
Readability: 0.1g to 2g
Pan Size: 400 x 300mm

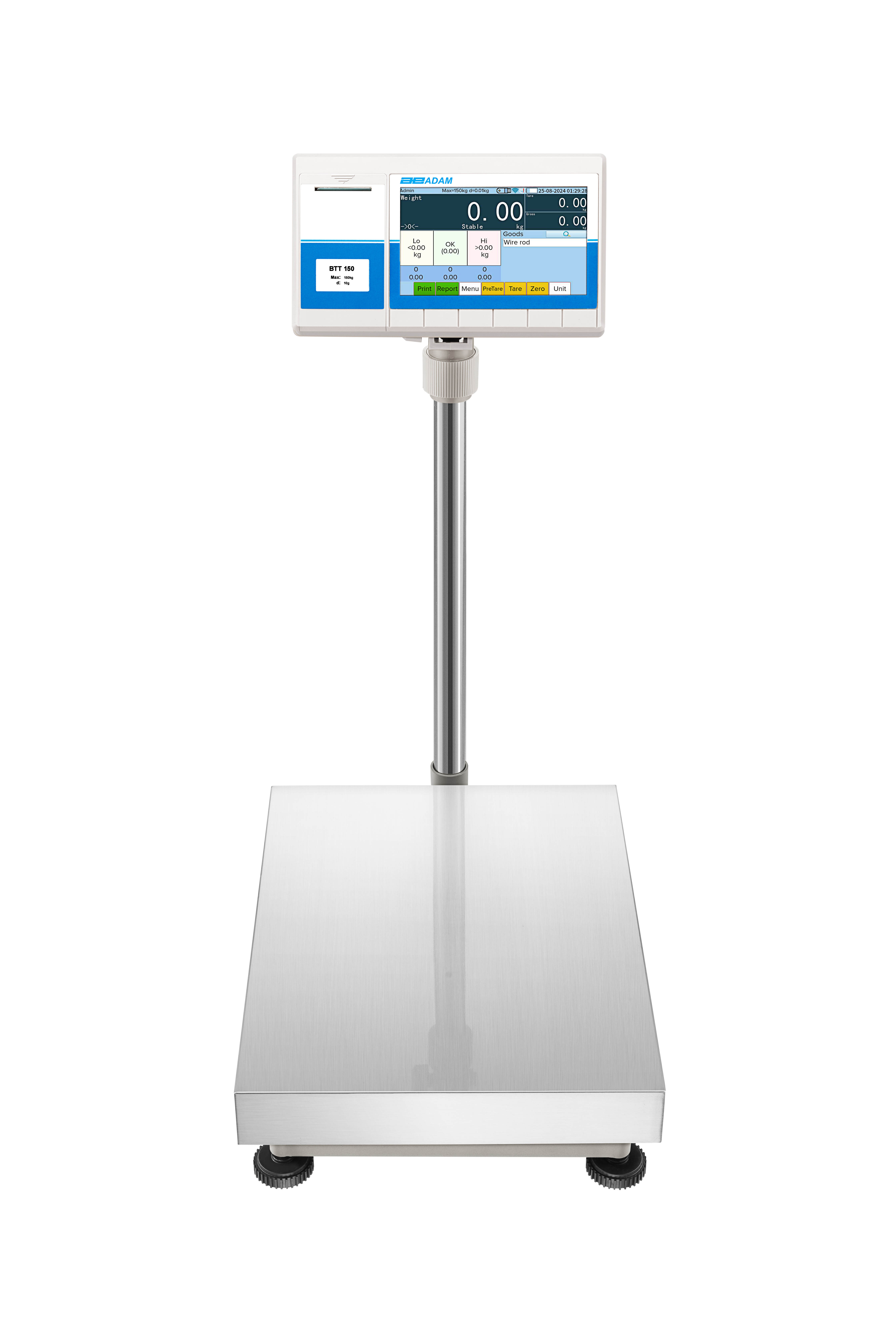

BTT Floor Scales
Capacity: 75kg to 300kg
Readability: 5g to 20g
Pan Size: 500 x 400mm
A sturdy, lightweight design with a sealed keypad, an internal rechargeable battery and the convenience of a built-in printer make the AE 504 advanced label printing indicator a great choice for demanding industrial settings and shipping and receiving areas. In addition to numerous weighing and counting applications, add barcodes, QR codes, pictures and custom logos to the 50mm-wide printed labels with the indicator’s integrated printer. The large, easy-to-read backlit LCD screen features 22mm-tall digits, while a color-coded numeric keypad allows quick and easy selection from 1,000+ PLUs or to manually enter tare weights, unit weights and sample sizes. NOTE: Not for use in retail applications
Features and Benefits
- Vivid, backlit LCD easily visible in any lighting conditions
- Programmable backlight can be set to "always on," "always off" or "light only when weighing"
- Colour-coded keys facilitate quick recognition of the most frequently used buttons
- RS-232 interface provides speedy connection to computers and printers
- Rugged construction stands up to industrial use
- Built-in printer can print weight, QR codes, bar codes and customized labels in numerous languages
- Rechargeable battery included for operation almost anywhere
- Programmable auto power-off to save energy
- Zero-tracking feature ensures display returns to zero reading
- Parts counting optimisation automatically refines piece weight as parts are added
- Checkweighing with audible alarm
- External calibration allows for verification and adjustment with weights
- Quick and easy configuration using the keypad
- User-selectable scale division
- Adam Connect compatible for wireless data transfer to printers and PCs
- A 3-year warranty means quality assured for years of use.
Technical specification
Model
AE 504
UPC: 840886105587
Metrology
Capacity
- Selectable
- Selectable
General Specifications
Weighing Units
- g, kg, lb, oz
- g, kg, lb, oz
Stabilisation Time
- 2
- 2
Interface
- RS-232
- RS-232
Calibration
- External calibration
- External calibration
Display
- Backlit LCD with 22mm high digits
- Backlit LCD with 22mm high digits
PLU memories
- 1006
- 1006
Power
Power Supply
- 12VDC 3A adapter / Internal rechargeable battery
- 12VDC 3A adapter / Internal rechargeable battery
Battery type
- Lead Acid
- Lead Acid
Number of batteries
- 1
- 1
Maximum Battery Life (in hours)
- 200
- 200
MSDS Sheet
Operating Conditions
Operating Temperature
- 0° to 40°C / 32° to 104°F
- 0° to 40°C / 32° to 104°F
Product Information
Construction
- ABS plastic
- ABS plastic
Net Weight
- 3.5kg
- 3.5kg
Dimensions
Overall dims
- 297x121x168mm
- 297x121x168mm
